Introduction

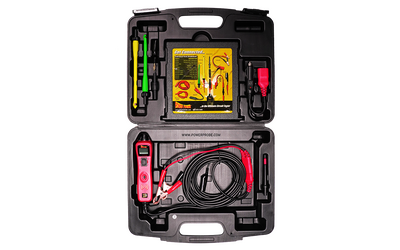

Power Probe 3 combined with the Gold Series Lead Set makes this kit the ultimate in circuit testing diagnosis. The best sidekick to the PP3 is a kit with different connectors, adapters, and extensions. The PP3LS01 was designed to increase the usability for the Power Probe 3 while diagnosing electrical circuits.
Features
- DC Voltmeter indicators provide active feedback
- LED Lights
- Bad Ground-Indicator
- Short Circuit indicator
- Relay and Component Tester
- Audible Monitoring of Electrical Signals
Specifications |
- DC 0 – 70V + 1 digit - P-P 0 – 70V |
Frequency response of tone pass through |
- 10Hz to greater than 10 Khz |
PP display |
- 15Hz Square Wave - 35Hz Sine Wave |
Power Probe Mode – Continuity to ground |
- First level – display is enabled less than 20K - Second level – green LED is enabled less than 2K |
– & + Peak Detector Response |
- Single event capture less than 200μs pulse width - Repetitive events less than 1μs pulse width |
Peak to Peak Mode |
- 0 – 70V + 1 digit - 4Hz to over 500kHz Square Wave input - 4Hz to over 250kHz Sine Wave input Threshold for PPAC/Audible passthrough |
Circuit Breaker |
8 amp thermal response – Manual reset Typical Response
|
